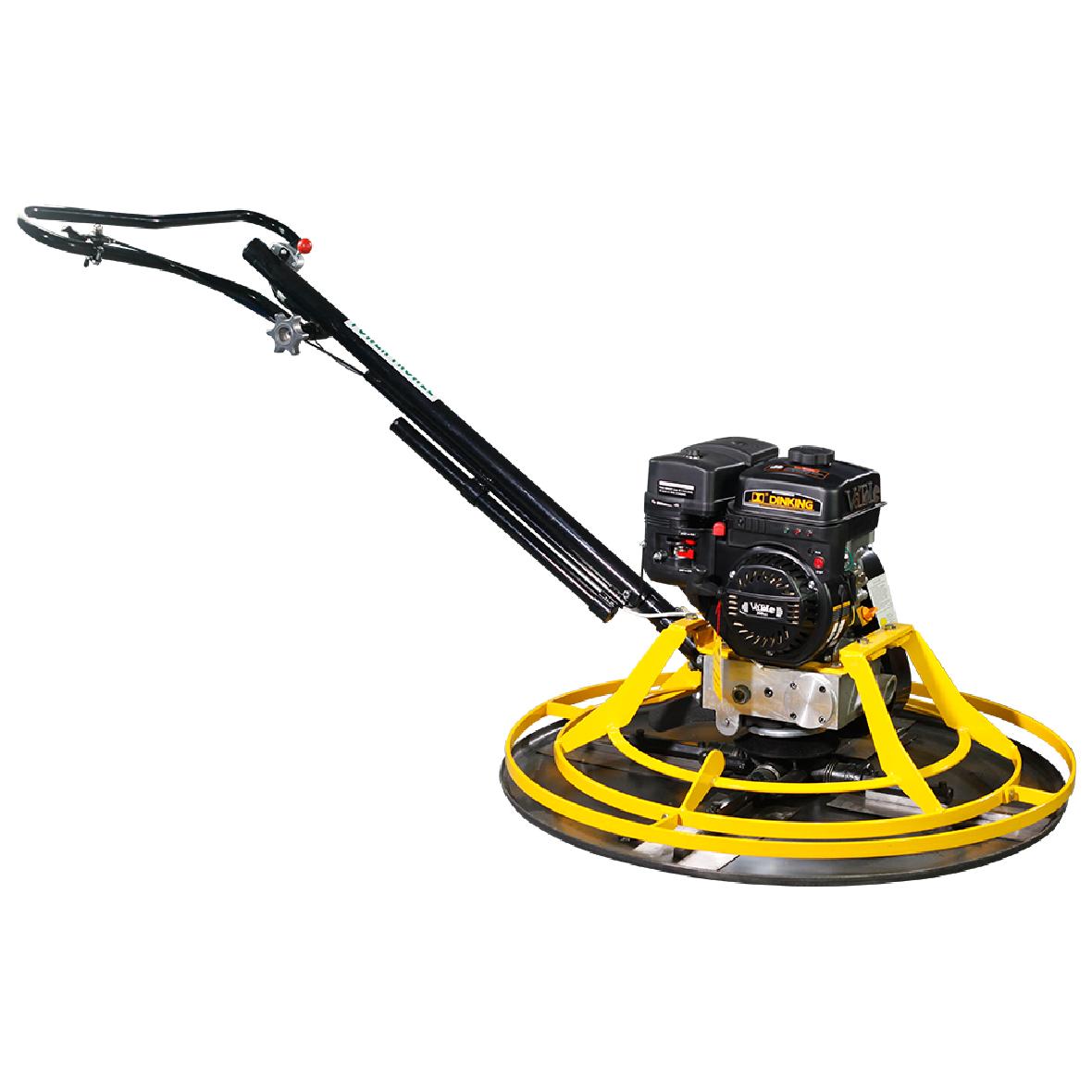

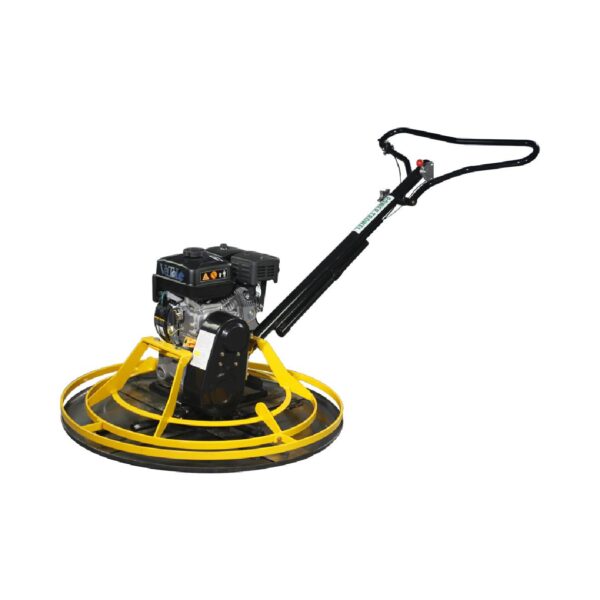

Power trowel is a construction machine used to impart a smooth surface finish on freshly poured concrete slabs. This machine consists of one rotor which rotate parallel with the slab surface.

Application:

Discs or multi-bladed attachments are spun against the still soft concrete surface by the rotors, thereby effectively smoothing out any blemishes or high spots.

Features:

Reliability

Durable under-pan.

The exxentricity type clutch ensure the convenient starting under the condition of no loading, which also is adjustable automatically and reduce the frequency of repairing and maintaining.

The pitch distance(the inclination between the blade and ground) has big operation range, which ensure the different application of flat troweling and smooth grinding in the working operation.

The nodular casting iron vane pitch distance controller by heat-treatment and the cellular structure by anti-rusting treatment ensure the long time working life of the machine.

Safety

Safety switch is standard part.

The V-belt drive is fully enclosed for better safety and trouble free use.

Easy operation

Handle with adjustable height to be easy and comfortable operation.

The bigger floor trowel machine has steady ring more, which make the operation to be smoother and reduce the fatigue.

Low gravity design provides the steady working operation.

Technical Data:

Power Trowel Model	WH-S100H	WH-S100R	WH-S100L	WH-S100S
Engine type	air-cooling, single cylinder,4-stroke
Engine	Honda GX160	Robin EY20	Loncin G200F	B&S1062
Engine Power(hp)	5.5	5.0	6.5	5.0
Smear diameter(cm)	92
Speed range (r/min)	60-100
Blade adjustment angle	0-15°
net weight (kg)	96	96	96	96
Gross weight (kg)	106	106	106	106
Package size(LWH)(cm)	10010036

*Other engines are available as requested

*Features and specifications are subject to change without notification

Maintenance:

Engine Periodic Maintenance Schedule(REGULAR SERVICE PERIOD)
Performed at every indicated month or operation hours interval, whichever comes first.
Item	Directive	Each use	First month or 20 Hrs.	Every 3 months or 50 Hrs.	Every 6 months or 100 Hrs.	Every year or 300 Hrs.
Engine oil	Check level	√	Cell	Cell	Cell	Cell
Engine oil	Change	Cell	√	Cell	√	Cell
Air cleaner	Check	√	Cell	Cell	Cell	Cell
	Clean	Cell	Cell	√(1)	Cell	Cell
	Replace	Cell	Cell	Cell	Cell	√＊
Sediment cup	Clean	Cell	Cell	Cell	√	Cell
Spark plug	Check-Clean	Cell	Cell	Cell	√	Cell
Spark plug	Replace	Cell	Cell	Cell	Cell	√
Idle speed	Check-Adjust	Cell	Cell	Cell	Cell	√(2)
Valve clearance	Check-Adjust	Cell	Cell	Cell	Cell	√(2)
Fuel rank and strainer	Clean	Cell	Cell	Cell	Cell	√(2)
Combustion chamber	Clean	After every 300 Hrs. (2)
Fuel line	Check	Every 2 years (Replace if necessary) (2)
＊ Replace the paper element type only.
(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.

Power Trowel Periodic Maintenance Schedule
Directive	Daily before starting	After first 5 Hrs.	After first 50 Hrs.	Every week or 25 Hrs.	Every month or 100 Hrs.	Every 3 months or 300 Hrs.
Check oil level of machine	√	Cell	Cell	Cell	Cell	Cell
Check fuel level line and fittings for cracks or leaks	√	Cell	Cell	Cell	Cell	Cell
Check and tighten engine clylinder screws	Cell	√	Cell	√	Cell	Cell
Check and tighten external hardware	Cell	√	Cell	√	Cell	Cell
Check V-belt	Cell	Cell	Cell	Cell	√	Cell
Clean engine cooling fins	Cell	Cell	Cell	√	Cell	Cell
Clean recoil starter	Cell	Cell	Cell	Cell	Cell	√
Change gearbox oil	Cell	Cell	√	Cell	Cell	√
Clean engine muffler and exhaust port	Cell	Cell	Cell	Cell	Cell	√
Note: If engine performance is poor, please check, clean and replace air filter elements as needed.
